MBC Passive Roof Systems



All MBC Passive Roof systems deliver a U-Value of 0.10W/m2K. The main diagram below shows how the three Passive elements (Roof, Wall and Foundation) link together. The individual roof type diagrams show the detail associated with each roof type: Fink Truss, Attic Truss, the Vaulted Roof and the Flat Roof.

Click image to expand

Vaulted Roof 0.10 W/m2K U-Value

All items supplied and fitted by MBC

  • 25mm x 50mm Counter Batten
  • Roof Membrane
  • 400mm Rafter
  • 400mm Cellulose fitted to sloped portion of engineered cut rafter
  • VCL / Airtight Membrane to achieve below 0.6 AC/HR or better
  • 25mm Service Cavity Batten

Click image to expand

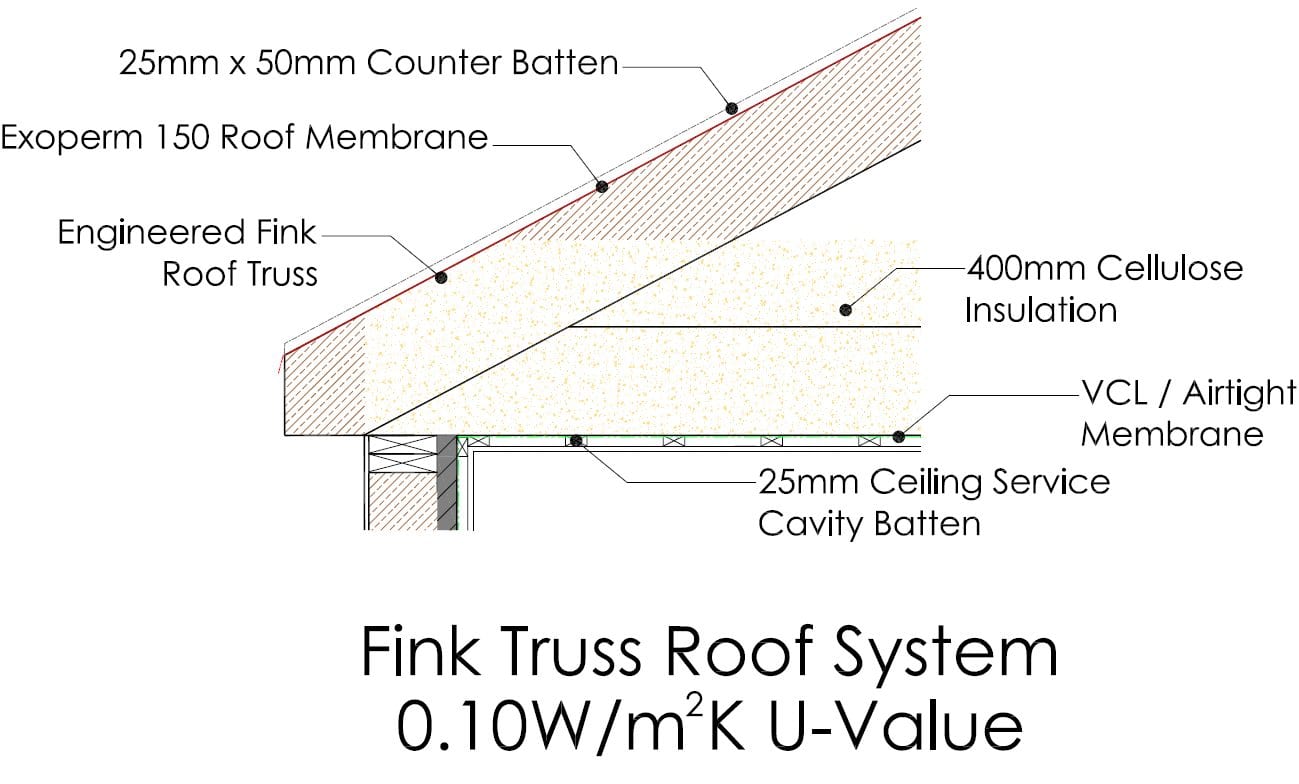

Fink Truss Roof 0.10 W/m2K U-Value

All items supplied and fitted by MBC

  • 25mm x 50mm Counter Batten
  • Roof Membrane
  • Roof Truss
  • 400mm Cellulose Insulation to flat bottom chord portion of truss
  • VCL / Airtight Membrane to achieve below 0.6 AC/HR or better
  • 25mm Ceiling Service Cavity Batten

Click image to expand

Attic Truss Roof  0.10 W/m2K U-Value

All items supplied and fitted by MBC

  • 400mm Cellulose Insulation to sloped portion of truss
  • 25mm x 50mm Counter Batten
  • Roof Membrane
  • Attic Truss
  • VCL / Airtight Membrane to achieve below 0.6 AC/HR or better
  • 25mm Ceiling Service Cavity Batten
  • 22mm Caberdek Flooring

Click image to expand

Flat Roof  0.10 W/m2K U-Value

All items supplied and fitted by MBC

  • 50mm min firring piece
  • 11mm OSB3 Deck
  • 400mm Cellulose Insulation
  • Engineered MiTek posi joists at centres specified by structural engineer
  • VCL / Airtight Membrane to achieve below 0.6 AC/HR or better
  • 25mm Service Cavity Batten
  • *Minimum 50mm firring pieces required to ensure ventilation to insulated flat roof system
